DHG系列
離合器/制動裝置的彈簧數量與扭矩對照表
| 型號參數 | 彈簧數量 | 離合扭矩（N.m） | 制動扭矩（N.m） | |
| 氣壓0.55MPa | 氣壓0.60MPa | |||
| DHG304-06 | 6 | 1707 | 1893 | 283 |
| DHG304-09 | 9 | 1533 | 1719 | 424 |
| DHG304-15 | 15 | 1185 | 1372 | 706 |
| DHG304-18 | 18 | 1011 | 1198 | 848 |
| DHG380-09 | 9 | 3437 | 3831 | 763 |
| DHG380-12 | 12 | 3139 | 3533 | 1018 |
| DHG380-15 | 15 | 2841 | 3235 | 1272 |
| DHG380-18 | 18 | 2543 | 2936 | 1526 |
| DHG470-06 | 9 | 7517 | 8337 | 1259 |
| DHG470-09 | 12 | 6762 | 7583 | 1889 |
| DHG470-15 | 15 | 5250 | 6074 | 3149 |
| DHG470-18 | 18 | 4499 | 5319 | 3778 |
| DHG500-09 | 9 | 8622 | 9608 | 1873 |
| DHG500-12 | 12 | 7882 | 8868 | 2497 |
| DHG500-15 | 15 | 7142 | 8128 | 3121 |
| DHG500-18 | 18 | 6400 | 7387 | 3746 |
| DHG550-09 | 9 | 10500 | 11809 | 2650 |
| DHG550-12 | 12 | 9474 | 10728 | 3545 |
| DHG550-15 | 15 | 8393 | 9647 | 4431 |
| DHG550-18 | 18 | 7312 | 8566 | 5317 |
| DHG600-09 | 9 | 14198 | 15860 | 3405 |
| DHG600-12 | 12 | 12833 | 14496 | 4541 |
| DHG600-15 | 15 | 114600 | 13132 | 5676 |
| DHG600-18 | 18 | 10105 | 11768 | 6811 |
| DHG675-09 | 9 | 22142 | 24571 | 3974 |
| DHG675-12 | 12 | 20600 | 23046 | 5290 |
| DHG675-15 | 15 | 19090 | 21521 | 6620 |
| DHG675-18 | 18 | 17568 | 19997 | 7948 |
| DHG675-21 | 21 | 15098 | 17414 | 9549 |

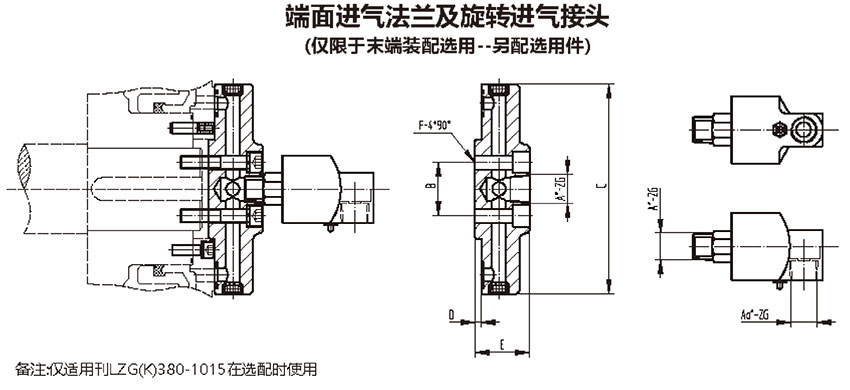

| 型號參數 | A''-ZG | Aa''-ZG | B | C | D | E | F 4*90° |
| DHG304 | 3/8'' | 3/8'' | 35 | 135 | 4 | 34 | 9-(M8) |
| DHG380 | 1/2'' | 1/2'' | 42 | 165 | 5 | 43 | 11-(M10) |
| DHG470 | 3/4'' | 3/4'' | 50 | 195 | 5 | 50 | 13-(M10) |
| DHG500 | 3/4'' | 3/4'' | 50 | 200 | 5 | 50 | 13-(M12) |
| DHG550 | 1'' | 1'' | 61 | 200 | 5 | 55 | 13-(M12) |
| DHG600 | 1'' | 1'' | 61 | 248 | 5 | 55 | 15-(M14) |
| DHG675 | 1'' | 1'' | 65 | 275 | 5 | 55 | 17-(M16) |
